DescriptionMetricImperial

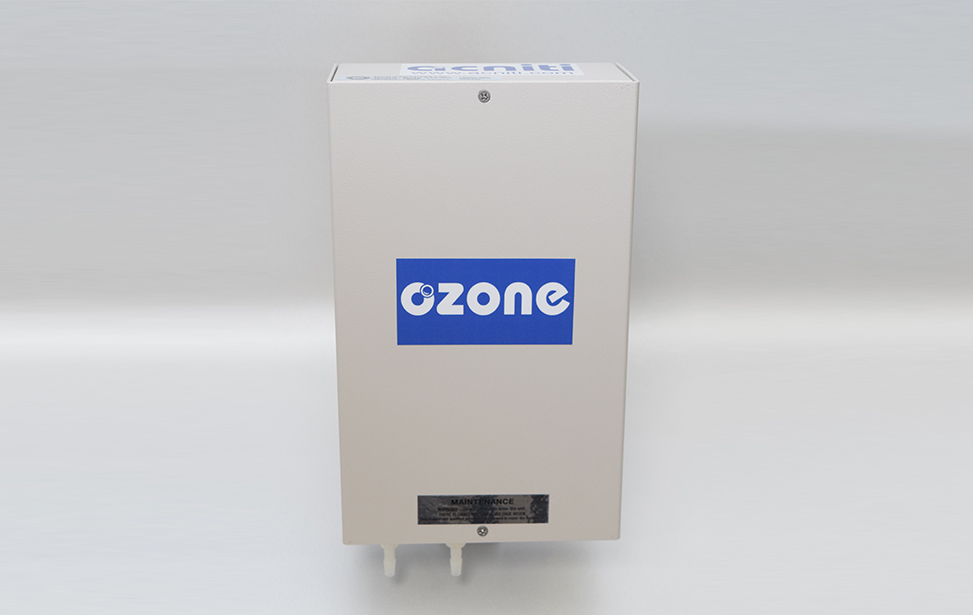

1 Model name O3 generator 1g O3 generator 1g
AmbientMetricImperial
2 Ambient temperature minimum 2 ℃ 36 ℉
3 Ambient temperature maximum 40 ℃ 104 ℉
4 Relative humidity maximum 92 % 92 %
GasMetricImperial
5 Minimum flow / minute 0.1 Liter 0.0 Gallon
6 Maximum flow / minute 1.0 Liter 0.3 Gallon
7 Minimum flow / hour 6.0 Liter 1.6 Gallon
8 Maximum flow / hour 60 Liter 16 Gallon
9 Pressure 0 kPa 0 PSI
10 Pressure 36 kPa 5 PSI
11 Gas quality Dried Air or Oxygen must be free from dust and oil. Dried Air or Oxygen must be free from dust and oil.
12 Gas remark Oxygen from an oxygen concentrator Oxiti-01 or dry air. Oxygen from an oxygen concentrator Oxiti-01 or dry air.
ElectricalMetricImperial
13 Unit phase Ø voltage 100-230 Volt 100-230 Volt
14 Unit power consumption 26 Watts 26 Watts
15 Wetted parts Kynar, Teflon, and Quartz materials. Kynar, Teflon, and Quartz materials.
Dimensions & weightMetricImperial
16 Dim. (w) x (d) x (h) 372 x 182 x 104 mm 14.6 x 7.2 x 4.1 inch
17 weight 2.6 Kg 5.7 lbs.
18 Shipping dim. (w)x(d)x(h) 56 x 37 x 22 cm 22 x 15 x 9 inch
19 Shipping weight 4 Kg 9 lbs.
Remarks
20 Other remarks
  • Ozone output is adjustable via a dial.

Easy integration of the 1-gram ozone generator with the Oxiti-01 and the Turbiti Fusion 808.

Integration oxiti-01 1-gram ozone generator and Turbiti Fusion 808
